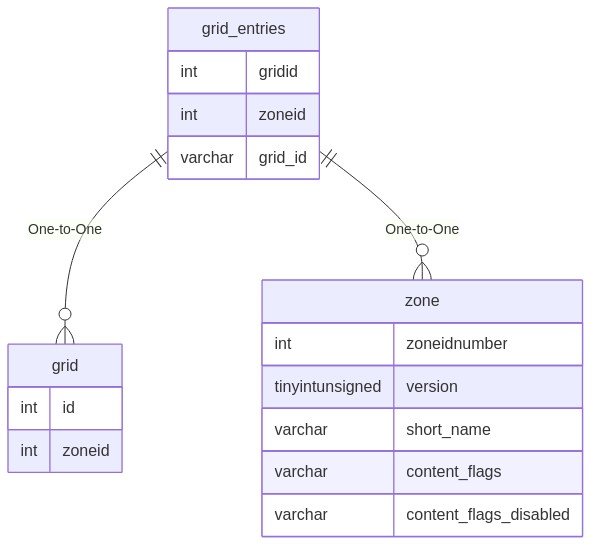

Relationship Diagram(s)

Diagram Edit


Relationship Type Local Key Relates to Table Foreign Key
One-to-One grid_id grid id
One-to-One zoneid zone zoneidnumber


Column Data Type Description
gridid int Grid Identifier
zoneid int Zone Identifier
number int Waypoint Identifier
x float X Coordinate
y float Y Coordinate
z float Z Coordinate
heading float Heading Coordinate
pause int Pause in Seconds
centerpoint tinyint Center Point: 0 = False, 1 = True
